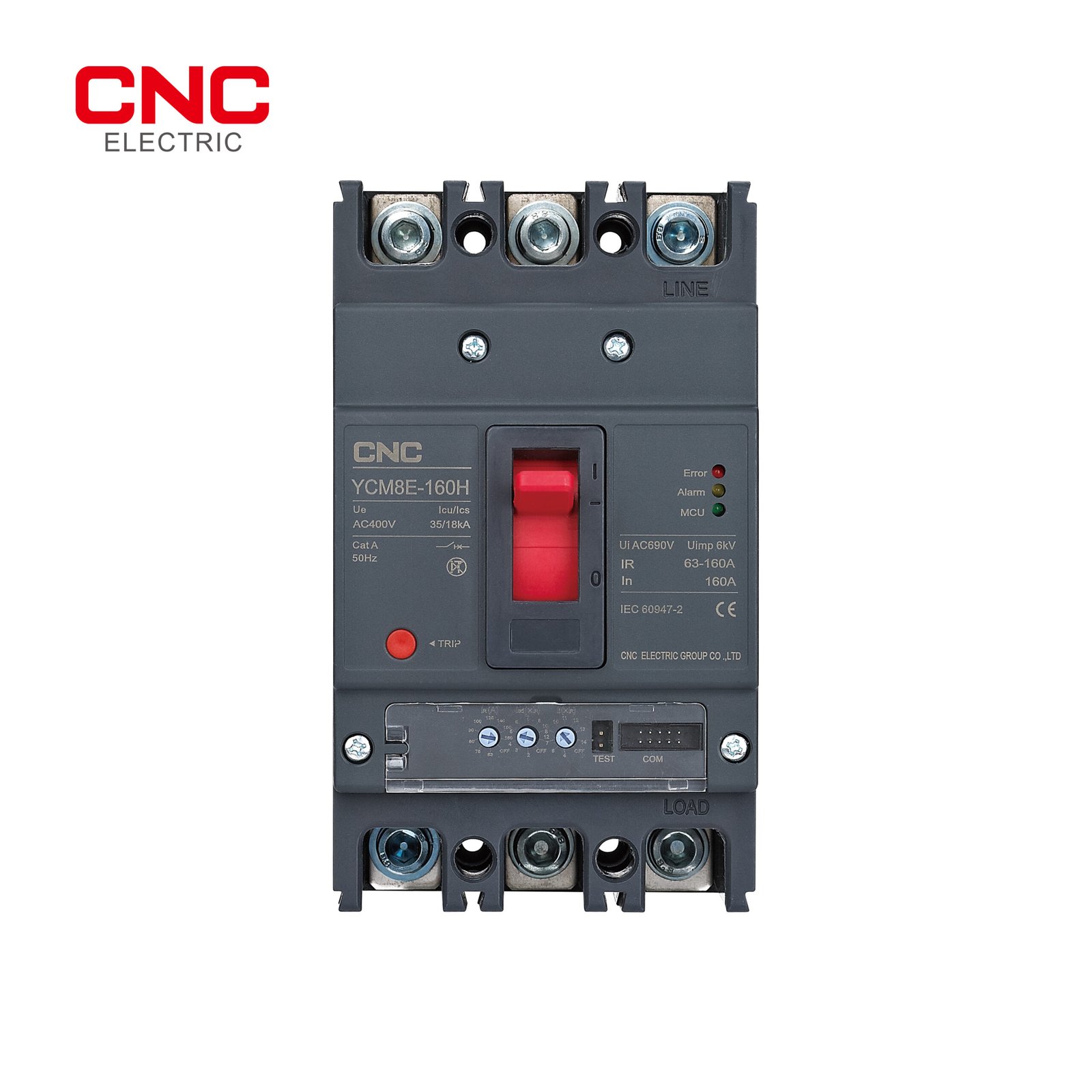

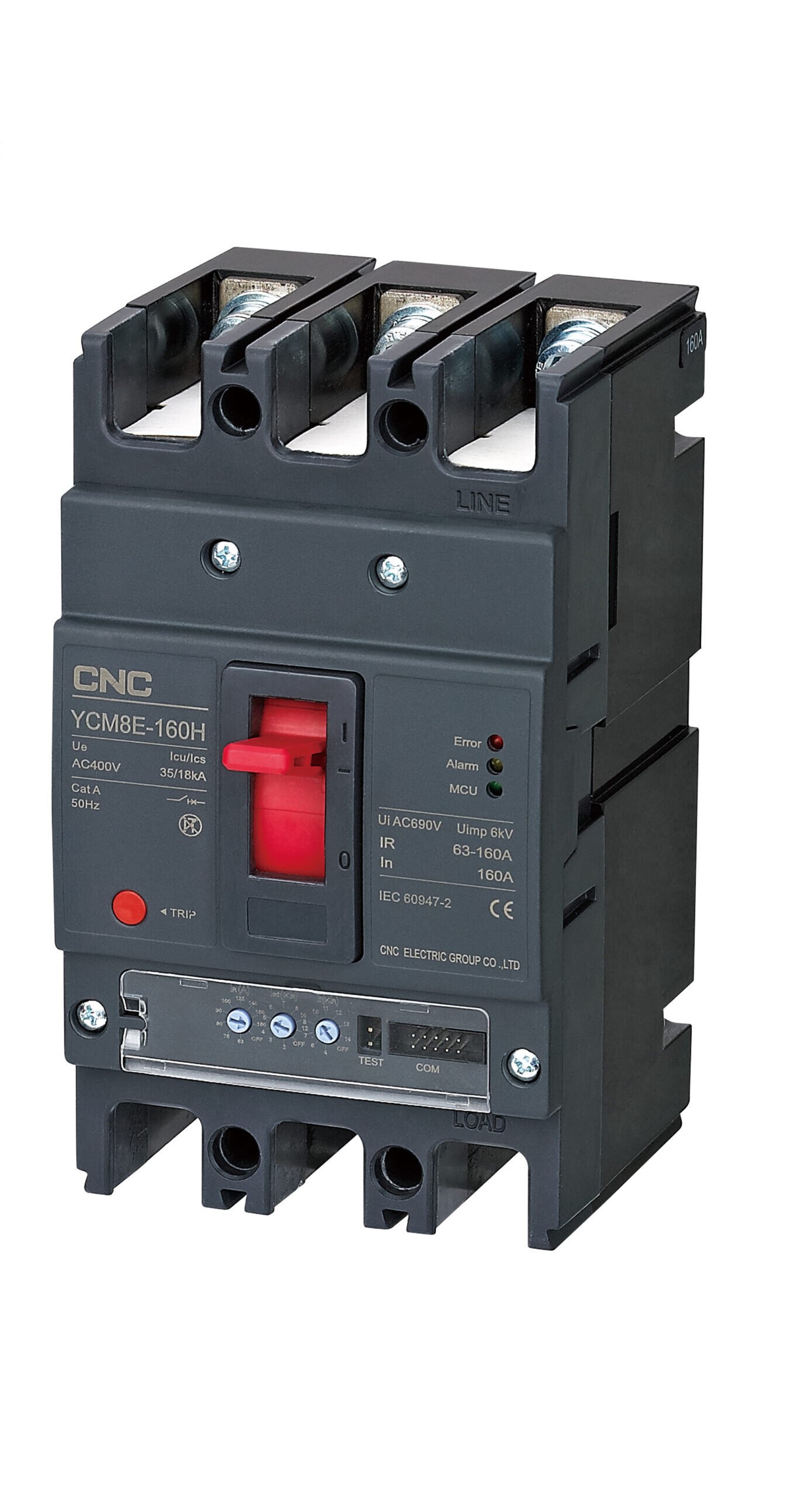

MCCB YCM8E series

YCM8E series electronic circuit breakers are applicable for low-voltage power systems of AC 50Hz, rated operating voltage up to
1000V and rated operating current from 16A to 800A
Its rated insulation voltage up to 1000V, is suitable for AC 50Hz distribution network circuit whose rated operation voltage is up to 690V, rated operation current from 10A to 800A. It can distribute power, protect the circuit and power supply devices from the damage of overload, short circuit and under voltage, etc.
This series circuit breaker feature small volume, high breaking capacity and short arcing. It can be installed vertically (namely vertical installation) and also installed horizontally (namely horizontal installation).
It complies with standards of IEC60947-2.

SKU: mccb-ycm8le-earth-leakage Category:

Description

Altitude up to 2000m;
Ambient medium temperature should be within -5℃ to +40℃ (+45℃ for marine products);
It can withstand the effect of damp air;
It can withstand the effect of salt fog or oil mist;
It can withstand the effect of moulds;
It can withstand the effect of nuclear radiation;
The max inclination is 22.5℃.
It still can work reliably when the ship subjects to normal vibration;
It can still work reliably if the product subjects to the earthquake (4g).
Places where the surrounding medium is free from explosion danger, and far away from gas or conductive dust that would erode
the metal or destroy the insulation;
Keep away from rain or snow.
