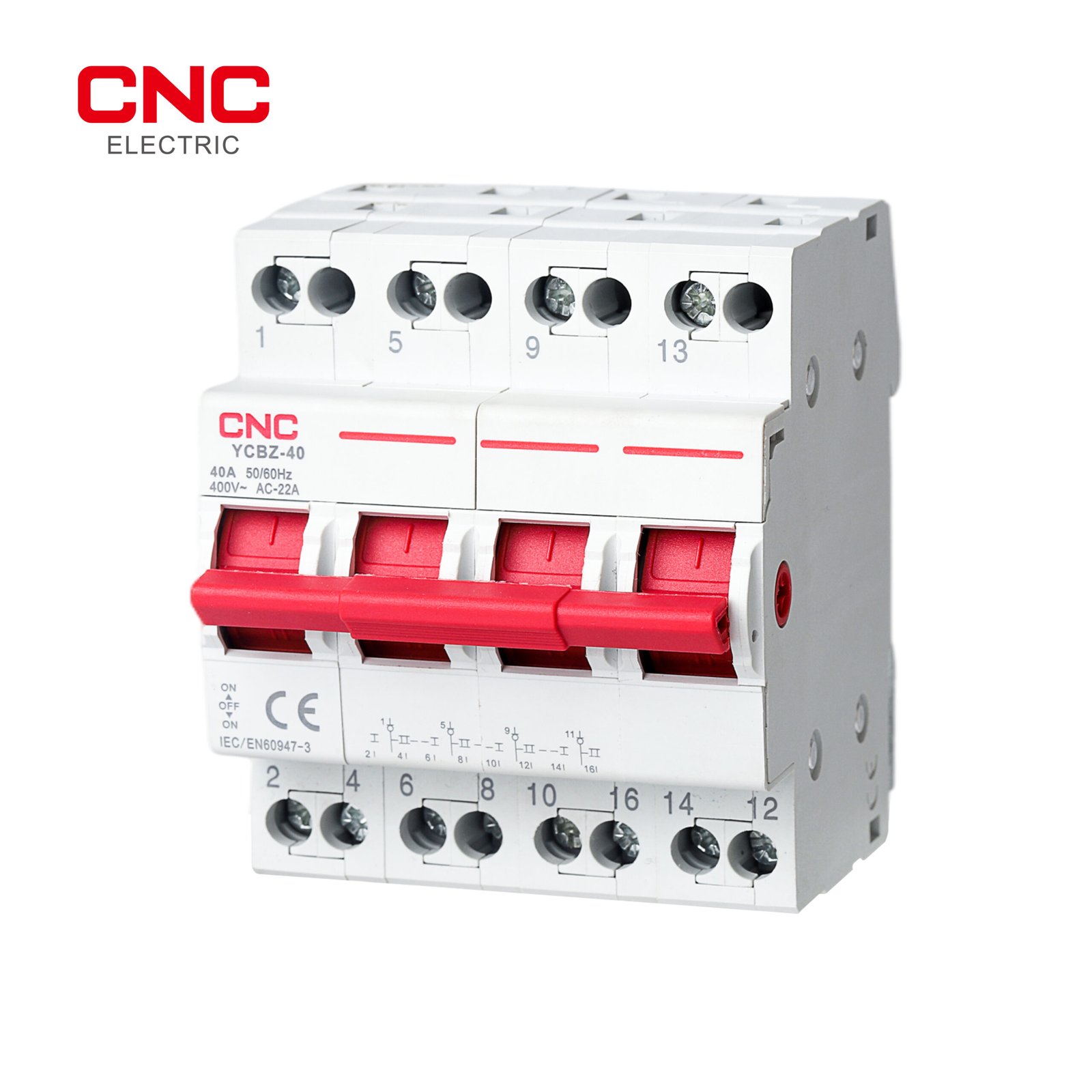

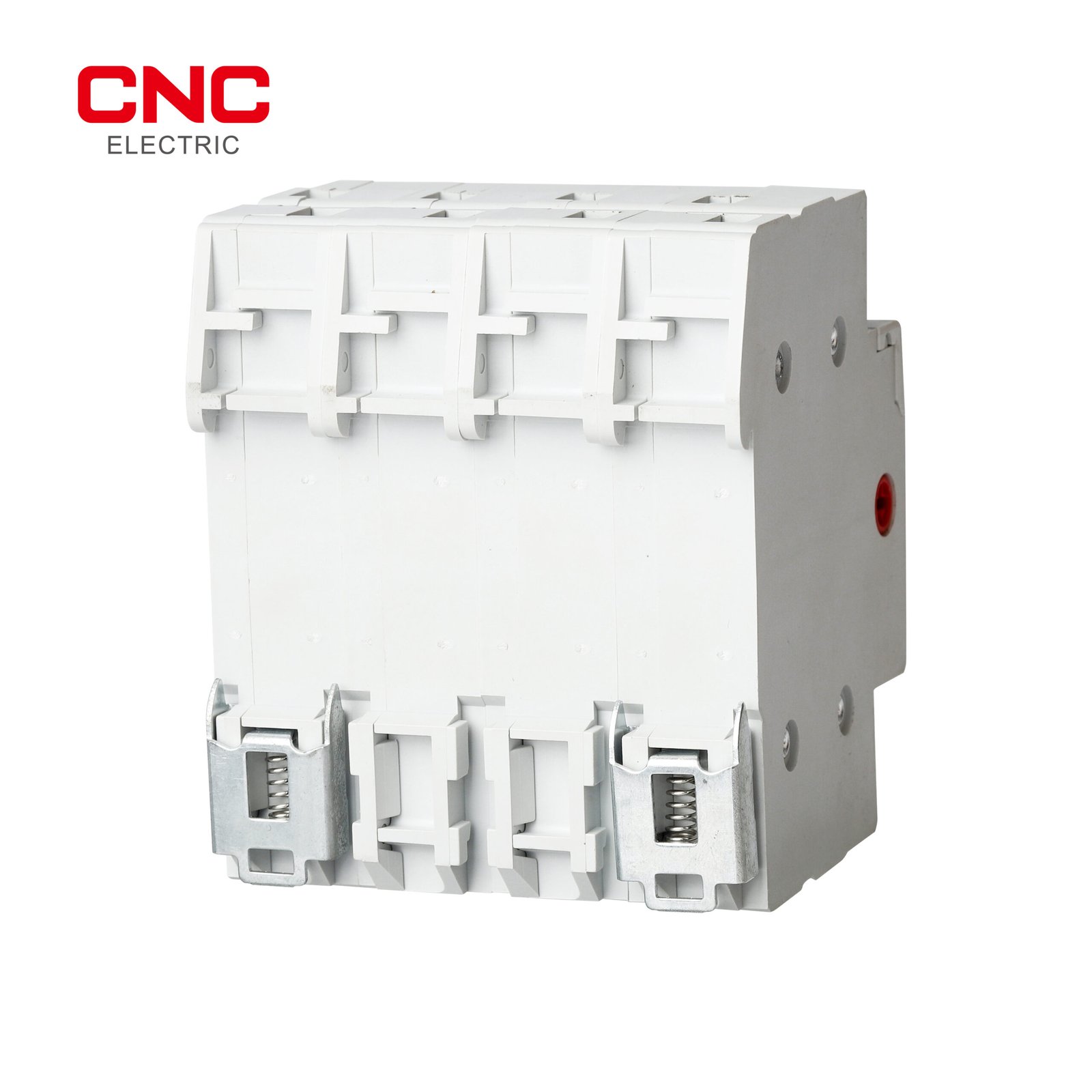

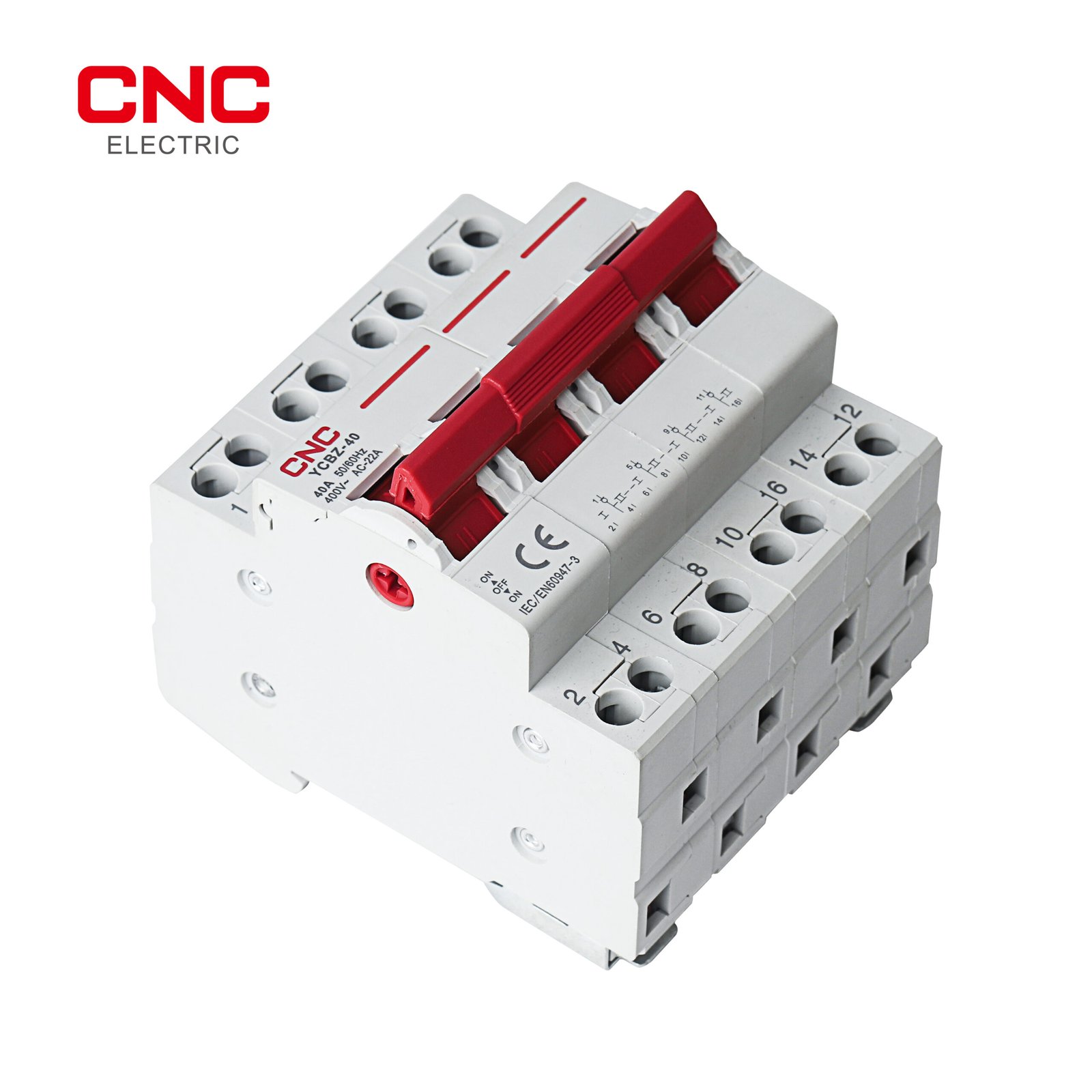

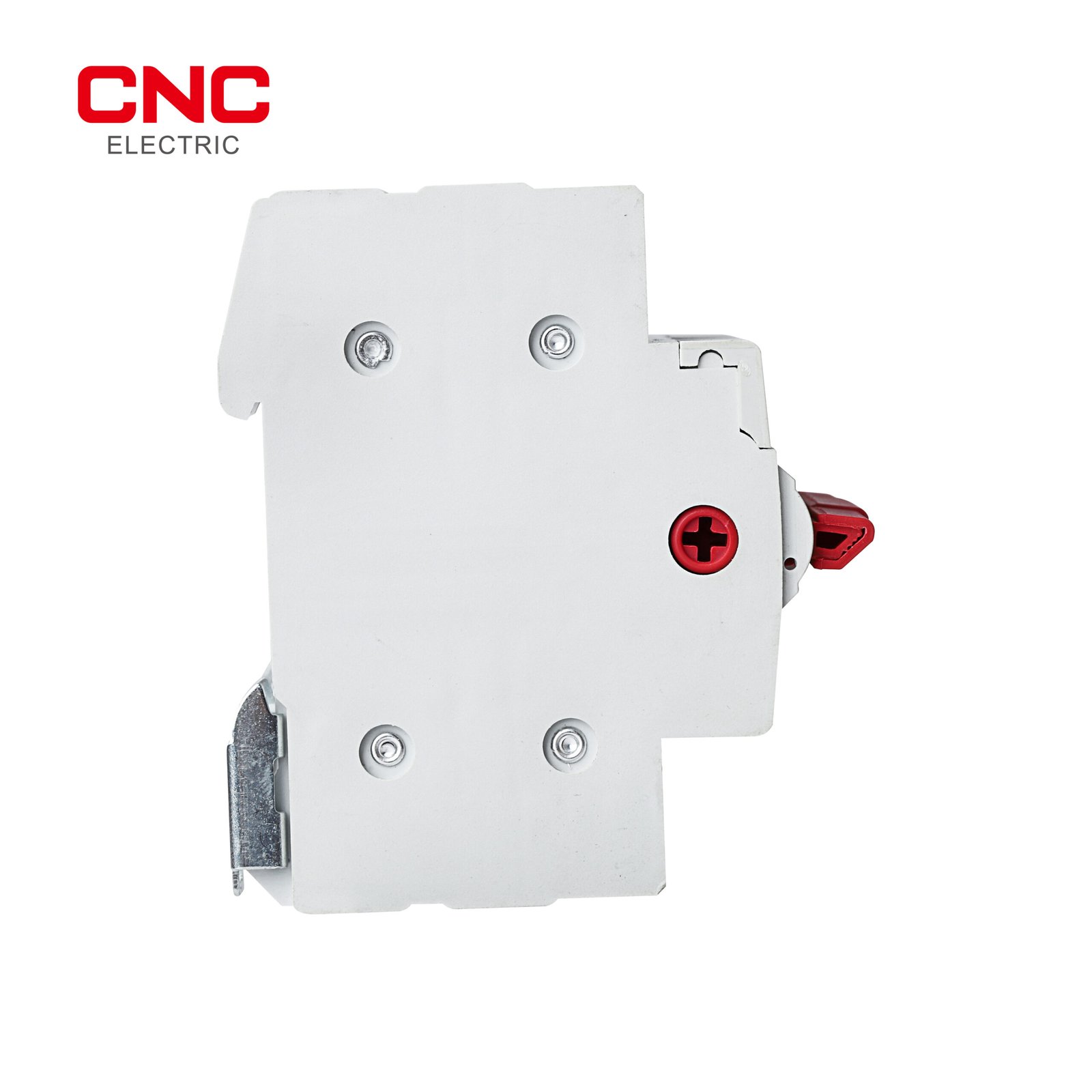

YCBZ-40 CHANGE-OVER SWITCH
Rated Voltage 240/415V~
YCBZ-40 CHANGE-OVER SWITCH
Rated Voltage 240/415V~
Rated Current 16,25,32,40A
Rated Frequency 50/60Hz
Number of Poles 1,2,3,4P
Contact form 1-0-2
Electrical Life 1500 Cycles
Mechanical Life 8500 Cycles
Protection degree IP20
Ambient Temperature -5℃~40℃
Terminal/Cable size 10mm²
Mounting On DIN rail EN60715(35mm) bymeans of fast clip device.
YCBZ-40 CHANGE-OVER SWITCH
Rated Voltage 240/415V~
YCBZ-40 CHANGE-OVER SWITCH
Rated Voltage 240/415V~
Rated Current 16,25,32,40A
Rated Frequency 50/60Hz
Number of Poles 1,2,3,4P
Contact form 1-0-2
Electrical Life 1500 Cycles
Mechanical Life 8500 Cycles
Protection degree IP20
Ambient Temperature -5℃~40℃
Terminal/Cable size 10mm²
Mounting On DIN rail EN60715(35mm) bymeans of fast clip device.
FROM 80A-125A1. Overload protection2. Short circuit protection3. Controlling4. Used in residential building, non-residential building, energy source industry and infrastructure.5. According to the type of …
FROM 80A-125A
1. Overload protection
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. According to the type of instantaneous release classified as follows: type B(3-5)ln, type C(5-10)ln, type D(10-20)ln
1. YCS1 automatic transfer switch (ATSE) is set the switches and control logic
integrated without additional controller, achieve integration of automatic electro
mechanical switch, voltage detection, frequency detection, communication
interface, electrical, mechanical interlocking functions, automatic, electric remote
emergency manual control.
2. This is the logical control panel from various logical order to manage the machines, operate with the gearbox to achieve, switching spring motor storage, …
MCCB YCM8T/A,RT THERMOMAGNETIC ADJUSTABLE
Its rated insulation voltage up to 1000V, is suitable for AC 50Hz distribution network circuit whose rated operation voltage is up to 690V, rated operation current from 10A to 800A. It can distribute power, protect the circuit and power supply devices from the damage of overload, short circuit and under voltage, etc.
This series circuit breaker feature small volume, high …
